High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row

Shenzhen Realrun Electronic Co., Ltd.
Contact Now
    Buy cheap High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row from wholesalers

    Buy cheap High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row from wholesalers
    • Buy cheap High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row from wholesalers
    • Buy cheap High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row from wholesalers
    • Buy cheap High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row from wholesalers
    • Buy cheap High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row from wholesalers

    High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row

    Ask Lasest Price
    Brand Name : RealRun
    Model Number : RFH1.27*3.8-2*nT 10T
    Certification : ISO9001, SGS, Rohs, Reach
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,PayPal
    Supply Ability : 100000pcs/day
    Delivery Time : 3~7workdays
    • Product Details
    • Company Profile

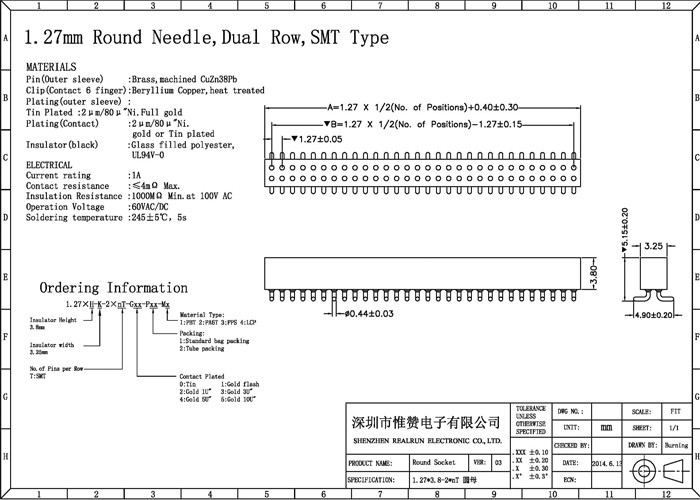

    High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row

    High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row


    NameRound Female Pin Header
    Pitch1.27mm
    TypeSurface Mount SMT type
    Insulator ColorBlack
    Insulator FlammabilityUL 94V-0
    Current Rating2A
    Contact Resistance(max)30m ohm Max
    Withstand Voltage(for 1 minute)500V AC/minute
    Insulation Resistance(min)1000M ohm Min at DC 500V
    Contact materialsGold/Tin plating
    Contact PlatedTin or gold over nickel
    Insulator materialPA6T
    Processing Temperature-40~105℃
    PackingTape & Reel
    OEM/ODMAccepted

    Description

    1. Female header connector is a kind of connector.

    2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.

    1. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.


    High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row


    Category

    1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.

    2. According to whether it has convex points, the convex points are divided into half convex and full convex.

    3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.

    4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.

    5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.

    6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal;


    Main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.


    We are specialized in electronic connectors, electronic wire harnesses and hardware development,

    if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
