26 Pin Female Header Idc Wire To Board Connector Press Cable Type
60V Black
Description
IDC Connector called insulation-displacement contact is an
electrical connector designed to be connected to the conductor(s)
of an insulated cable by a connection process which forces a
selectively sharpened blade or blades through the insulation,
bypassing the need to strip the conductors of insulation before
connecting. When properly made, the connector blade cold-welds to
the conductor, making a theoretically reliable gas-tight
connection.
Product Application
IDC Connector is widely used in cable PCB board VGA/SVGA card or
BIOS chip, the discrete wire assembly is directly connected to the
PCB, introducing the power and signal to the PCB, and the daisy
chain board creates the continuous string board together.

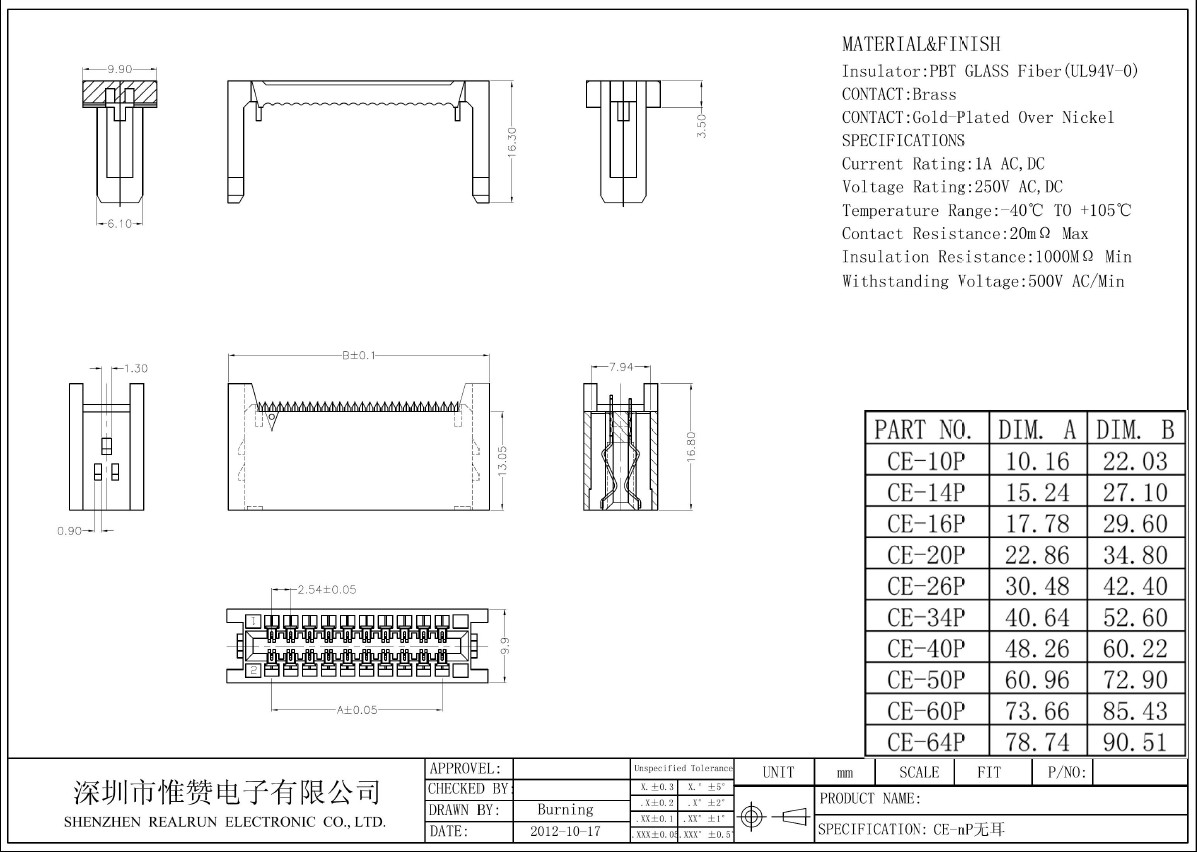

| Name | IDC Connector |
| Pitch | 2.54mm |
| Type | Press Cable Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
FAQ:
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Why we choose RealRun for our supplier?
A: RealRun has more than 10 years experiences in the electronic
connectors area.
The goods with good quality and service are sold to more than 70
countries.
More, all the goods have the relevant approvals and the service is
excellent if you will consider us to be your supplier.
One of the biggest electronic connectors supplier in the China
mainland.
Q: If happend with the defective products when receiving the goods,
how to deal with?
A: Next to impossible of the goods will be not good as before the
shipping, we have many chekings to confirm the products is no
problem. Then if happened, RealRun will bear all the
responsibility.
First: why this will be happen, how happen, and how to control in
the future, a table will be come out for your checking.
Second: discuss the solutions.
Finally: RealRun will bear all the fees if returning and changing
the goods or the loss caused.
Q: which payment can be accepted:
A: The payment terms can be flexiable depend on the quantity and
products.
Usually, new customer we prefer the 100% T/T before shipping or
30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
