Product Description:
Connector manufacturers, professional in producing connector for
more than 15 years
We are specialized in electronic connectors, electronic wire
harnesses and hardware development, if you couldn't find the exact
items you need, please send us your drawings or pictures, we will
provide the best solution for you.

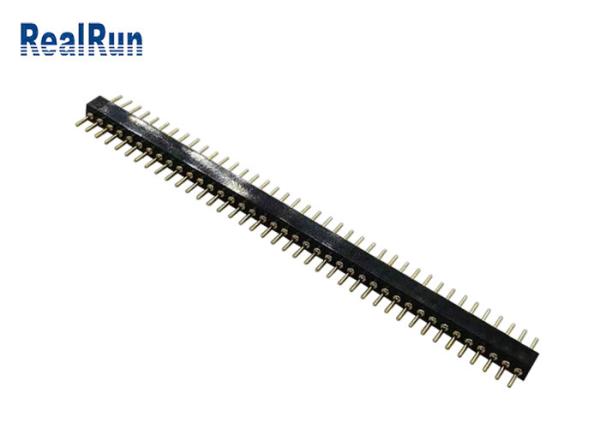

Black 1.778 mm Round Male Header L10.0 180° Straight 1 Row 40 Pin
Header Connector
Product features: It is usually used together with female header to form board to
board connection; or it is used together with electronic harness
terminal to form board to cable connection; it can also be used
independently for board to board connection.
Product function: Its function is to act as a bridge between the blocked or isolated
circuits in the circuit, and to take on the task of current or
signal transmission.
Application scope: It is widely used in display, digital camera,
MP3, MP4, PDA, computer, computer motherboards, mobile storage
disk, card reader, security products, electricity meter, wireless
telephone, mobile phone, interphone, program-controlled switches,
VCD, DVD, LCM/LED display module, electronic toys, household
appliances etc.. Provide the most reliable connection for the plate
to plate and the line to plate.
| Name | Round Male Pin Header Connector/PCB Connector |
| Brand Name | RealRun |
| Place Of Origin | Guangdong,China |
| Pitch | 1.778mm |
| Plastic Hight | 3.0 mm |
| Number Of Rows | Single Row |
| Type | DIP Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PBT UL94V-0 |
| Contact | Brass |
| Packing | Bag Packing |
| OEM/ODM | Accepted |
| Mounting Type | DIP Type |
| Termination | Customization |
| Contact Shape | Round Pin |
| Pin Available | Customized |
Product Application:
Round pin header is widely used in displays, digital camera, MP3,
MP4, PDA, computer, computer motherboard, a variety of mobile
storage disk, card reader, security products, electricity meter,
wireless telephone, mobile phone, interphone, program-controlled
switches, VCD, DVD, LCM/LED display module, electronic toys,
household appliances etc. As the most reliable connection plate to
plate, wire to board provides.
Category
1. According to the spacing: 1.27, 1.778, 2.0, 2.54, 5.0mm;
2. According to the installation mode of layout, it is mainly
divided into 180 degrees, 90 degrees, SMT(vertical mount SMT,
horizontal SMT and right angle SMT);
3. According to the number of rows, it is divided into single row,
double row, three row and four row. At present, there are only four
rows at most;
4. According to the Height: 1.0/1.5/2.5/3.0mm;
5. Number of pins: 01 to 40; 02 to 80;
7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape
packing or depend on customer.
FAQ
Q: Are you manufacturer of trading company?
A: We are a manufacturer in Shenzhen, China.
Q: Can I get some samples?
A: Yes,some samples are free.
Q: If happend with the defective products when receiving the goods,
how to deal with?
1. Next to impossible of the goods will be not good as before the
shipping, we have many chekings to confirm the products is no
problem. Then if happened, RealRun will bear all the
responsibility.
2. First: why this will be happen, how happen, and how to control
in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and
changing the goods or the loss caused.
Q: What is your terms of payment?
A: Small Order amount, 100% better by PayPal or T/T in advance.
Large amount like more than 5000USD, 30% T/T in advance, balance
before shipment.
Q: Can you help me design a plug, receptacle, connector or harness?
A: Yes. We have decades of experience in providing customized
services. Contact our R & D team for further assistance.
