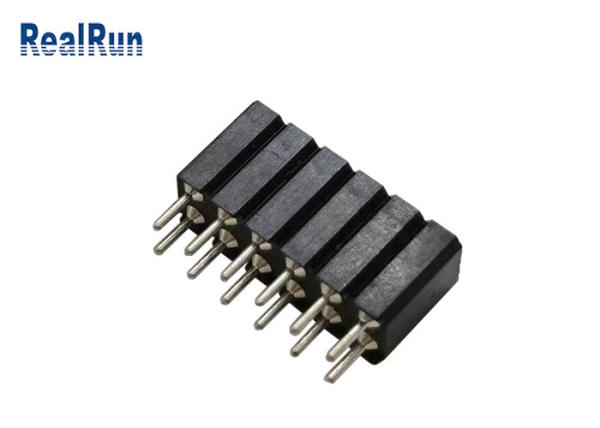

30P Round Pin Female Header 2.54mm Pitch Dip Tin Plated Plastic
Height 7.0
Product features: It is usually used together with female header to form board to
board connection; or it is used together with electronic harness
terminal to form board to cable connection; it can also be used
independently for board to board connection.
Product function: Its function is to act as a bridge between the blocked or isolated
circuits in the circuit, and to take on the task of current or
signal transmission.
Application scope: It is widely used in display, digital camera,
MP3, MP4, PDA, computer, computer motherboards, mobile storage
disk, card reader, security products, electricity meter, wireless
telephone, mobile phone, interphone, program-controlled switches,
VCD, DVD, LCM/LED display module, electronic toys, household
appliances etc.. Provide the most reliable connection for the plate
to plate and the line to plate.

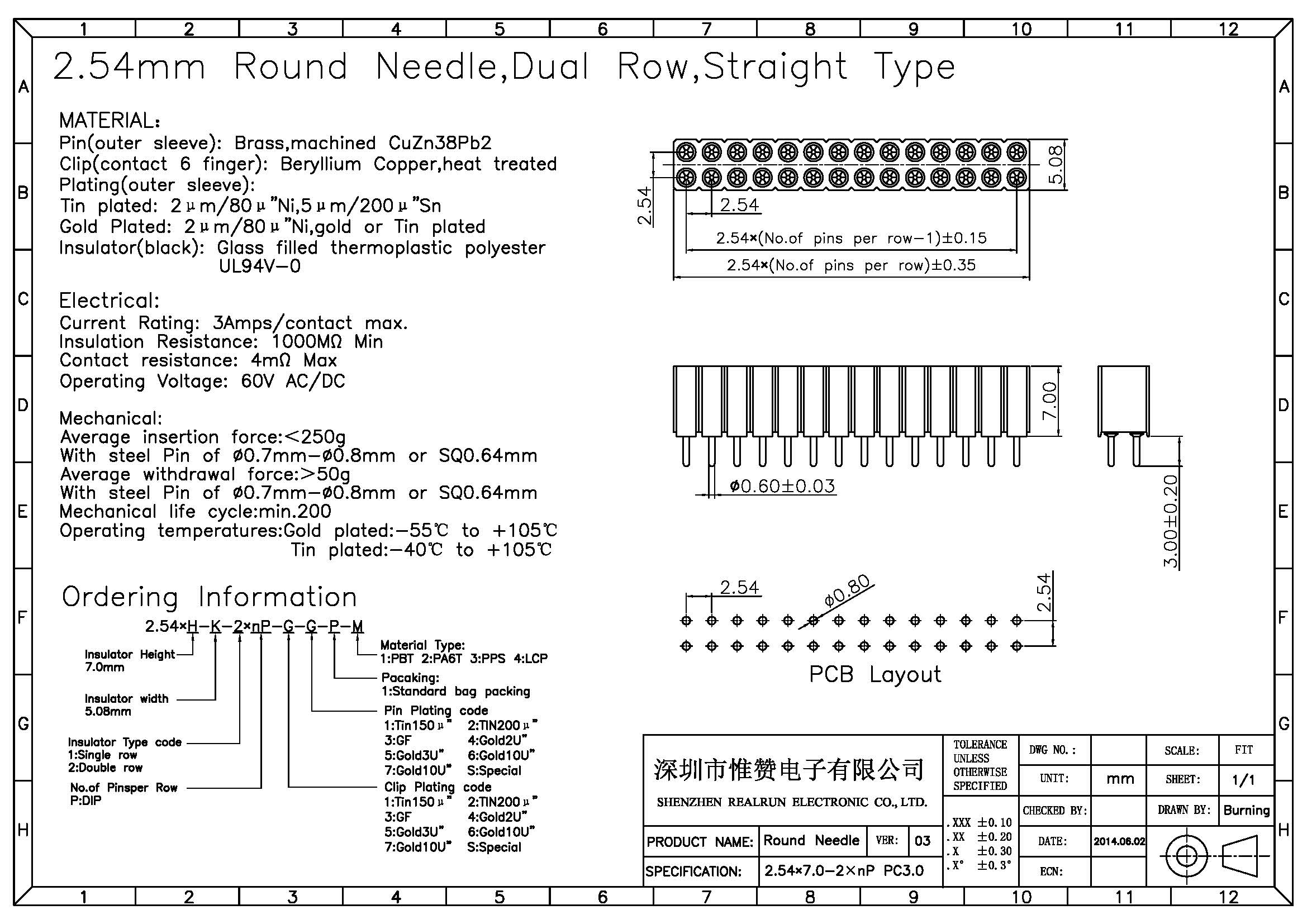

| Name | Round Female Pin Header Connector/PCB Connector |
| Brand Name | RealRun |
| Place Of Origin | Guangdong,China |
| Pitch | 2.54mm |
| Plastic Hight | 7.0 mm |
| Number Of Rows | Double Row |
| Type | DIP Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL94V-0 |
| Clip(contact 6 finger) | Beryllium copper, heart treated |
| Plating(outer sleeve) | Tin plated: 2μm/80μ"Ni,5μm/200μ" Sn Gold Plated:2μm/80μ"Ni,gold or Tin plated |
| Insulator(black) | Glass filled thermoplastic polyester UL94V-0 |
| Current Rating | 3Amps/contact max |
| Insulation resistance | 1000MΩ Min |
| Contact Resistance | 4mΩ Max |
| Operating Voltage | 60V AC/DC |
| Contact | Brass |
| Packing | Tube Packing |
| OEM/ODM | Accepted |
| Mounting Type | DIP Type |
| Termination | Customization |
| Contact Shape | Round Pin |
| Pin Available | Customized |
