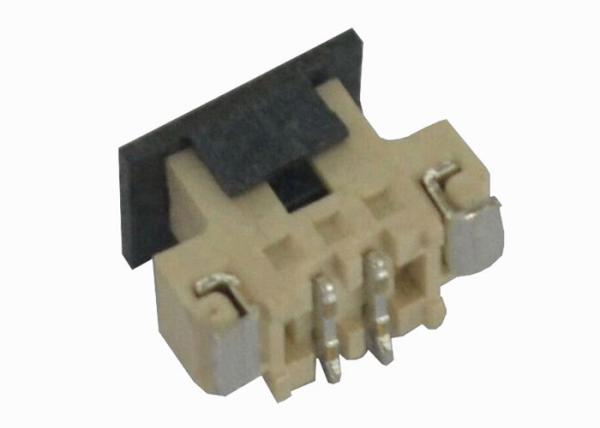

SMT Wafer Connector 2 Pin 2.54 Mm Wire To Board Connector 3A
Current Rating
| Name | Wafer Connector |
| Pitch | 1.0mm |
| Type | DIP type |
| Insulator Color | Beige |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Product Name: Wafer connector
1. Features: it makes the production process more convenient, more
flexible design, reduces the
production and maintenance cost, easy repair, and easy to upgrade,
improve the flexibility of design
2. Material: (UL94V-0) PA9T, PA6T, PA46, PA66 etc.
Product feature
1. The insulation resistance is the index to measure the insulation
performance between the contacts of electrical connector and
between the contacts and the shell, with the order of magnitude
ranging from hundreds of megohm to gigaohm.
2. Electrical connector with high contact resistance shall have low
and stable contact resistance. The contact resistance of the
connector varies from a few milliohms to tens of milliohms.
3. Electrical strength, or voltage and dielectric withstand
voltage, is the ability to withstand rated test voltage between
connector contacts or between contacts and shell.
What are the differences in the connector industry's header, wafer,
and housing?
1.HEADER is a metal piece and plastic parts assembled together,
usually on the PCB board, which is the same as WAFER.
2.HOSING is generally only plastic (some have iron), and wire and
terminal assembled together.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and
products.
2. Usually, new customer we prefer the 100% T/T before shipping or
30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
