AWM 20624 80C 60V VW-1 1.0Mm 8P FFC Flexible Cable Tin Plated 620Mm A Type

What's the Flexible Flat Cable(FFC)

Flexible flat cable is new type connection data cable, which made by PET insulation and thinner copper conductor.

They widely used in consumer electronics and more and more choose by every industry customer.

Generally, There are 0.5mm/1.0mm/1.25mm/2.0mm/2.54mm and so on.

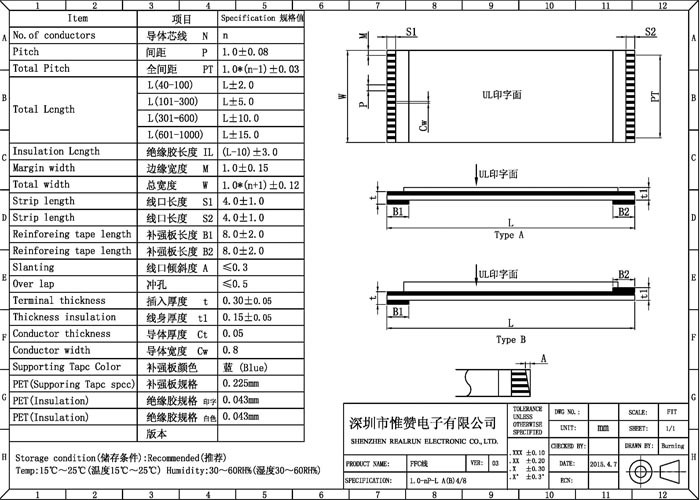

FFC alignment technical parameters

1. Number of conductors N: The number of copper conductors in the cable;

2. Spacing P: distance between two adjacent conductor centers;

3. Edge M: The distance between the center line of the outermost conductor and the edge of the row line;

4. Full spacing TP: distance between the outermost two conductor centers, TP = P *(N-1);

5. Total width W: distance between the two edges of the row, W = P *(N +1).

Please feel free to contact us and we will send you the drawings of you need :

How to distinguish cable direction

1. Same direction

Both bump at the same way.

2. Opposite direction

Both bump at the oppsite way.

3. Up and dowm direction

Both bump at the different way. For the details, you can check above image description.

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: Which payment can be accepted?

A: 1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.

Q: What’s the delivery time?

A: It usually takes about 3~7 working days to produce the products.

Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
