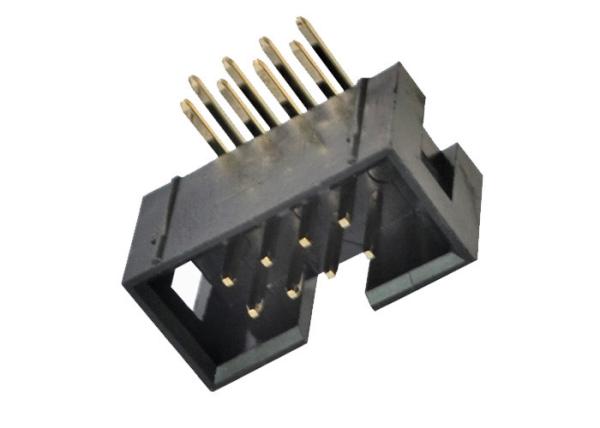

2x4P Box Header PA6T UL94V-0 90 Degree Bend Pin Connector Gold H9.0
Machine
Product Description:
Connector manufacturers, professional in producing connector for
more than 15 years
We are specialized in electronic connectors, electronic wire
harnesses and hardware development, if you couldn't find the exact
items you need, please send us your drawings or pictures, we will
provide the best solution for you.
2x4P Box Header PA6T UL94V-0 90 Degree Bend Pin Connector Gold H9.0
Machine
1. features: high temperature resistance, high voltage electrical
conductivity.
2. material: PA9T/LCP/PBT plating surface treatment: gold or tin.
3. scope of application: mainly applicable to communications and
electronic equipment and the use of data, is welded on the PCB
plate, connecting the corresponding specifications of IDC cable and
other circuit designers require, reach the circuit. Usually the
transmission control signal and if the current.
Scope of application:
Shrouded Header Connector is widely used in displays, digital
camera, MP3, MP4, PDA, computer, computer motherboard, a variety of
mobile storage disk, card reader, security products, electricity
meter, wireless telephone, mobile phone, interphone,
program-controlled switches, VCD, DVD, LCM/LED display module,
electronic toys, household appliances etc. As the most reliable
connection plate to plate, wire to board provides.
Specification:
| Name | Box Header Connector/PCB Connector |
| Pitch | 2.54mm |
| Plastic Height | 9.0mm |
| Type | Right Angle SMD Type |
| Insulator Color | Black |
| Insulator Flammability | PA6T+30%Glass Fiber, UL94V-0 |
| Current Rating | 3 A |
| Contact Resistance(max) | 30m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact materials | Brass |
| Contact Plating | Tin or Gold over nickel |
| Insulator material | PA6T/LCP |
| Operation Temperature | -40~105℃ |
| Packing | Bag/Tray Packing/Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | SMD Solder |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2Pin~80Pin(Customized) |

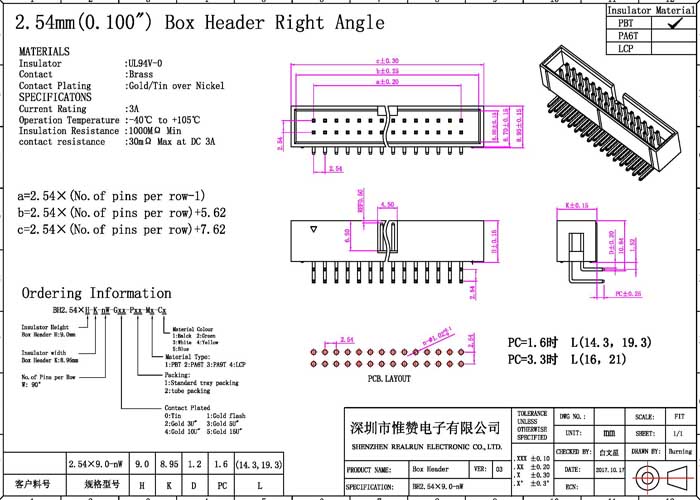

Contact us send the drawing of you need:
How to Packing:
We provide flexible packaging methods to meet different
requirements. For Female Header connector, there are four methods
of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing
4. Reel Packing with Cap, suitable for automatic machine producing
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express
shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment,
Please inform us if you have a prefer payment way.
FAQ
Q: Whether supply custom?
A: Yes,we are a professional manufacturer of connector and wire
harness and custom for clients.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to
quality control from the very beginning to the end. Every product
will be fully assembled and carefully tested before it's packed for
shipment.
Q: How to buy your products?
A: You can directly contact our sales team by skype email or make a
call,we will respond within 12 hours.
Q: Will you deliver the right goods as ordered? How can I trust
you?
A: Yes, we will. The core of our company culture is honesty and
credit.
Q: What are your products applied to?
A: Automotive use, Industial use, Home applicance, Electronic etc.
