Product Description:
Connector manufacturers, professional in producing connector for
more than 15 years
We are specialized in electronic connectors, electronic wire
harnesses and hardware development, if you couldn't find the exact
items you need, please send us your drawings or pictures, we will
provide the best solution for you.

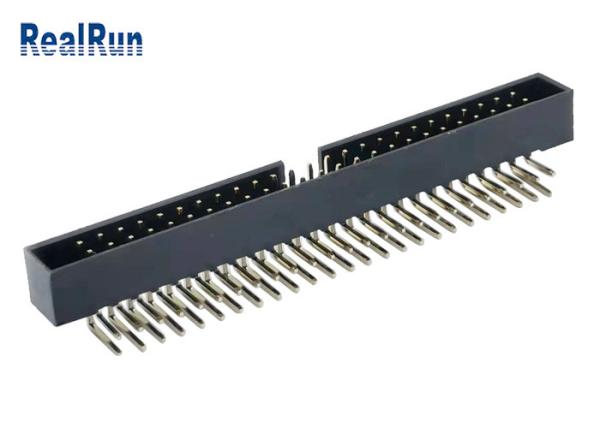

Gold Flash PA6T 1.27Mm Double Row Shrouded Pin IDC Box Header 50P
Right Angle
| Name | Box Header Connector/PCB Connector |
| Pitch | 1.27mm |
| Plastic Height | 4.9mm |
| Type | Right Angle Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PA6T UL94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30m ohm Max at DC3A |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact materials | Brass |
| Contact Plating | Tin or Gold over nickel |
| Insulator material | PA6T/LCP/PA9T/PBT |
| Operation Temperature | -40~105℃ |
| Packing | Bag/Tray/Tube/Reel Packing/Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | 90 Degree Solder |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2Pin~80Pin(Customized) |
Please feel free to contact us and we will send you the drawings
you need.
Description
1. Box header connector is usually composed of square plastic
socket and several square pins arranged in order. The difference
between the simple ox connector and ox horn connector is that the
simple ox horn has removed the clasps on both sides.
2. Box header connector is welded on the PCB, it connects the IDC
cable of corresponding specifications, and then forms the circuit
connection mode that the designer needs to achieve with other
circuits.
3. It is usually used to transmit control signals and weak current.
Why choose RealRun for supplier?
A: 1. RealRun has more than 15 years experiences in the electronic
connectors area.
2.The goods with good quality and service are sold to more than 70
countries.
3.More, all the goods have the relevant approvals and the service
is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China
mainland.
FAQ
Q1. Can I have a sample order for Connector?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-7 days, mass production time needs 1-2 weeks for
order quantity more than 10K pieces.
Q3. Do you have any MOQ limit for Connector?
A: Low MOQ 10pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 12
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Connector?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print number on the Connector?
A: Yes. Please inform us formally before our production and confirm
it firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, before delivery we have many test and full check 100%, we
strictly control the quality of products and bear this
responsibility.
