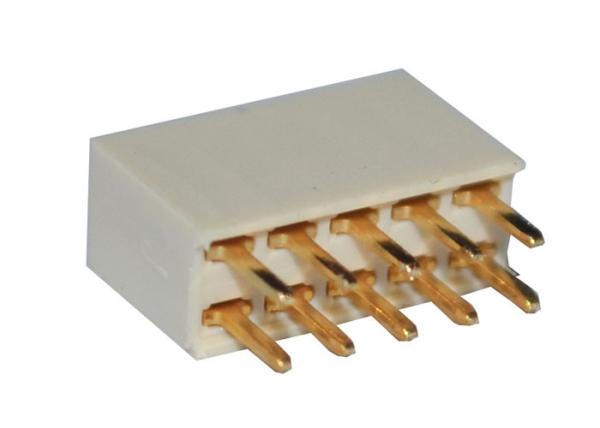

White 2.0mm Pitch Straight Dual Row Female Header Connector 180
Degree Type
| Product name: 2.0mm female pin connector |
| 1. product features: the use of a wide range of environmental
protection, high temperature, fire resistance, oxidation
resistance. |
|
| 2. product function :Its function is to act as a bridge between the
blocked or isolated circuits, and to take on the task of current or
signal transmission. |
|
| 3. scope of application: widely used in electronics, electrical
appliances, instruments in the general connection of the main
components of the current or signal transmission. Usually with the
needle supporting the use of a board to board connection. The
utility model is matched with an electronic wiring harness terminal
to form a board to wire connection. |
Specifications
1. Pitch:2.0mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA9T UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: Through Hole
6: Number of Row: Dual Row
7: Contact Finish: Gold Over Nickel
8: Termination: Solder
9: Color:White
10: Current Rating:2A
11: Withstand Voltage:500V AC/DC
12: Contact Resistance:20mΩ Max
13: Pin Length: Customization
14: Pin Available:2Pins to 80Pins
15. Number of Row:3Rows
16. Fastening Type:Push-Pull
17. Style:Board to Board
18. Contact Type:Female Socket
19. Platic Height: 6.35mm
FAQ
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market
test.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No.
, quantity, drawing, etc.
Q: Who do I contact if I have a technical questions?
A: We have an experienced team of technical sales representatives
in house. They are ready to answer any questions you may have and
assist you in your project.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product
and quoting department can get started on your quote. As an added
service, our qualified engineering staff can produce drawings.
Q. If happend with the defective products when receiving the goods,
how to deal with?
1. Next to impossible of the goods will be not good as before the
shipping, we have many chekings to confirm the products is no
problem. Then if happened, RealRun will bear all the
responsibility.
2. First: why this will be happen, how happen, and how to control
in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and
changing the goods or the loss caused.
Q. which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and
products.
2. Usually, new customer we prefer the 100% T/T before shipping or
30%T/T advance before shipping.
Shenzhen RealRun Electronic Co., Ltd established in May of 2005,
specializes in operating connectors. Main products: Pin header,
Female header, Box header, Ejector header, IDC series, IC socket,
single and double row round hole socket, FFC/FPC connector and SD
socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.
