2.0mm Female Straight Pin Header Connector Four Row 180 Degree
Copper Alloy
| Product name: 2.0mm female pin connector |
| 1. product features: the use of a wide range of environmental
protection, high temperature, fire resistance, oxidation
resistance. |
|
| 2. product function :Its function is to act as a bridge between the
blocked or isolated circuits, and to take on the task of current or
signal transmission. |
|
| 3. scope of application: It is used together with the pin header to
form the board to board connection; or it is used together with the
electron beam end to form the board to line connection; it can also
be used independently for the board to board connection. |

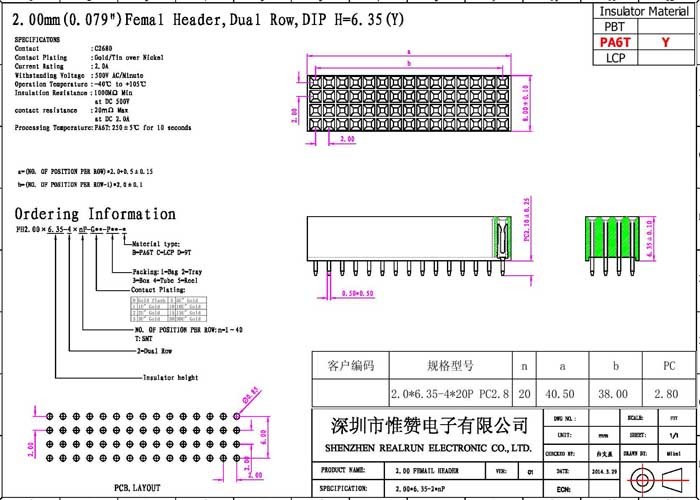

Specifications
1. Pitch:2.0mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA9T UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: Through Hole
6: Number of Row: Four Row
7: Contact Finish: Gold Over Nickel
8: Termination: Solder
9: Color:White
10: Current Rating:2A
11: Withstand Voltage:500V AC/DC
12: Contact Resistance:20mΩ Max
13: Pin Length: Customization
14: Pin Available:2Pins to 80Pins
15. Number of Row:3Rows
16. Fastening Type:Push-Pull
17. Style:Board to Board
18. Contact Type:Female Socket
19. Platic Height: 6.35mm
