Product Description:
Connector manufacturers, professional in producing connector for
more than 15 years
We are specialized in electronic connectors, electronic wire
harnesses and hardware development, if you couldn't find the exact
items you need, please send us your drawings or pictures, we will
provide the best solution for you.
PCB Single Row Female Socket 15P 2.54Mm Pitch Straight Type Machine
Header
Product features: Environmental protection and high temperature
resistance plastic, high conductivity of brass conductor, durable,
stable tin or gold plating performance, oxidation resistance and
external factors interference, long service life.
Product function: It is made of brass wire, phosphorus copper wire, copper clad steel
wire, pure copper wire, tin plating nickel surface after the
bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA,
computer, computer motherboards, mobile storage disk, card reader,
security products, electricity meter, wireless telephone, mobile
phone, interphone, program-controlled switches, VCD, DVD, LCM/LED
display module, electronic toys, household appliances etc...
| Name | Pin Header Connector |
| Pitch | 2.54mm |
| Type | Solder |
| Insulator Color | Black |
| Insulator | PBT/PA6T+30%Glass Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Resistance | 20mΩ Max at DC 1.5A |
| Current Rating | 1.5A |
| Contact Material | Brass |
| Withstanding Voltage | 500V AC/minute |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact Plated | Gold/Tin over Nickel |
| Processing Temperature | PBT: 230±5℃ for 10 seconds |
| Insulator material | PA6T PBT LCP |
| Packing | Reel&tape packing |
| OEM/ODM | Accepted |
| Mounting Type | Dip Type |

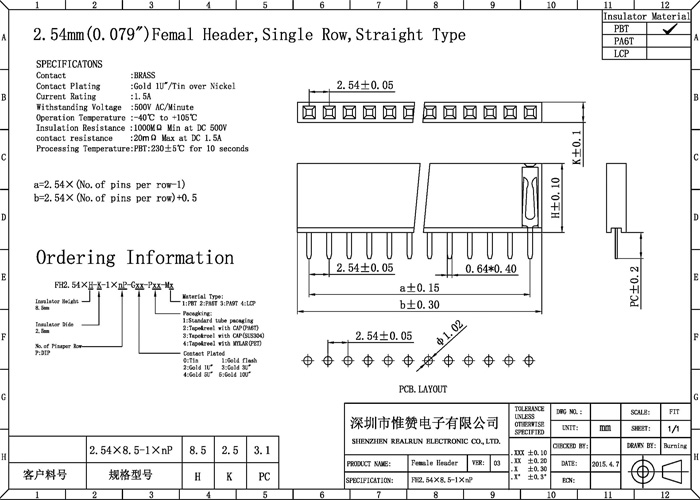

Please feel free to contact us and we will send you the drawings of
you need:
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm,
5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three
plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type
SMD,Vertical SMT/SMD,U type
FAQ
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No.
, quantity, drawing, etc.
Q: Are you trading company or factory?
A: We are a factory with 15 years of connector manufacturing
experience.
Q: What's your terms of payment?
A: 1.The payment terms can be flexiable depend on the quantity and
products.
2.Usually, new customer we prefer the 100% T/T before shipping or
30%T/T advance before shipping.
Q: Can i get some samples?
A: Yes, some samples are for free.
Q: Has the product been check before delivery?
A: Yes, we have 100% full check before delivery.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product
and quoting department can get started on your quote. As an added
service, our qualified engineering staff can produce drawings.
Q: Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of
our professional control from design,production to shipment.
