Product Description:
Connector manufacturers, professional in producing connector for
more than 15 years
We are specialized in electronic connectors, electronic wire
harnesses and hardware development, if you couldn't find the exact
items you need, please send us your drawings or pictures, we will
provide the best solution for you.
PA46 High Temperature Resistance XH 2.54Mm Wafer Connector 4P For
Wire To Board
| Name | Wafer Connector |
| Pitch | 2.54mm |
| Type | DIP type |
| Insulator Color | Beige |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA46 |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Product feature
1. The insulation resistance is the index to measure the insulation
performance between the contacts of electrical connector and
between the contacts and the shell, with the order of magnitude
ranging from hundreds of megohm to gigaohm.
2. Electrical connector with high contact resistance shall have low
and stable contact resistance. The contact resistance of the
connector varies from a few milliohms to tens of milliohms.
3. Electrical strength, or voltage and dielectric withstand
voltage, is the ability to withstand rated test voltage between
connector contacts or between contacts and shell.
4. Other electrical performance.
Product Application
The main supporting fields of wafer connector are transportation,
communication, network, it, medical treatment, home appliances,
etc.
| Current Rating | 2.0 AMP |
| Contact Resistance | 30 mΩ Max |
| Withstand Voltage | 1000 V AC/DC |
| Insulation Resistance | 1000MΩ Min |
| Contact Material | Coppy Alloy |
| Products Name | XH Series Wafer Connector |
| Pitch | 2.54mm(0.10'') |
| Mounting Type | Right Angle Through Hole |
| Contact Plating | Tin Plating |
| Insulator Material | PA46 UL94V-0 |

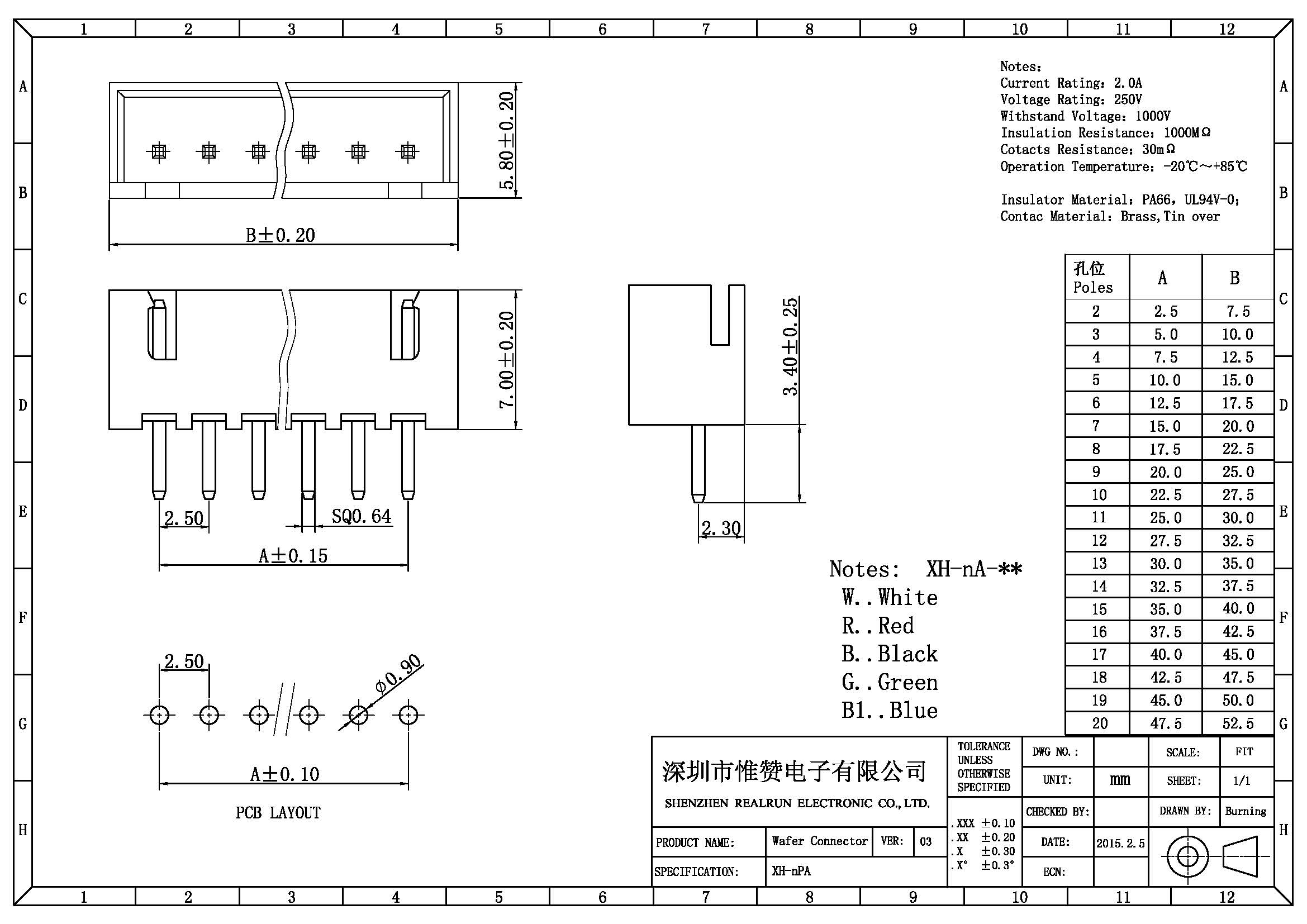

Please feel free to contact us and we will send you the drawing of
you need:
FAQ
Q1. Can I have a sample order for Connector?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-7 days, mass production time needs 1-2 weeks for
order quantity more than 10K pieces.
Q3. Do you have any MOQ limit for Connector?
A: Low MOQ 10pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 12
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Connector?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print number on the Connector?
A: Yes. Please inform us formally before our production and confirm
it firstly based on our sample.
Q7: Do you offer guarantee for the products?
Yes. we can. we have many checks to guarantee the goods are
perfect. all ours product are approved Rohs, Reach, IS0 9001 2015,
IATF 16949 2016, UL certification.
