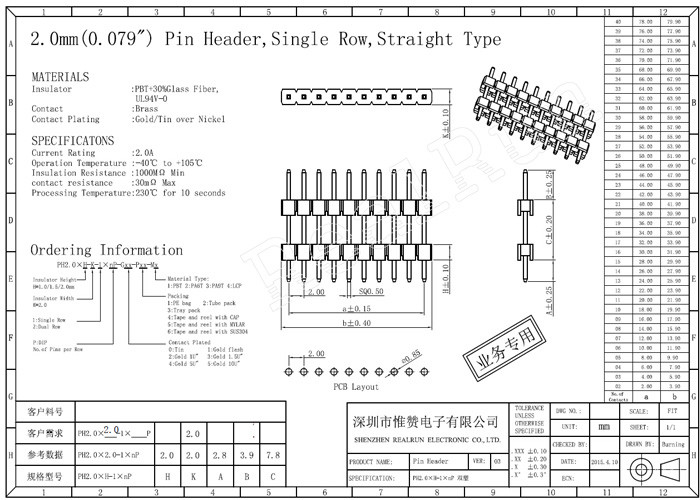

Double Plastic 10 Pin Header Single Row 180 Degree Type Pcb Pin
Connector
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.0mm |
| Plastic Height | 2.0mm |
| Type | DIP Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 2.0A |
| Contact Resistance(max) | 30m ohm Max |
| Operating Voltage | 40VAC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Description
1. Pin header is widely used in displays, digital camera, MP3, MP4,
PDA, computer, computer motherboard, a variety of mobile storage
disk, card reader, security products, electricity meter, wireless
telephone, mobile phone, interphone, program-controlled switches,
VCD, DVD, LCM/LED display module, electronic toys, household
appliances etc. As the most reliable connection plate to plate,
wire to board provides.
2. Its function is to act as a bridge between the blocked or
isolated circuits in the circuit, and to take on the task of
current or signal transmission.
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96,
5.08mm;
2. According to the height and quantity of plastic (such as single
plastic, double plastic, three plastic, etc.).
3. According to the number of rows, it is divided into single row,
double row, three row and four row. At present, there are only four
rows at most;
4. According to the installation mode of layout, it is mainly
divided into 180 degrees, 90 degrees, SMT(vertical mount SMT,
horizontal SMT and right angle SMT);
5. Number of stitches: 02 to 80; 02 to 100;
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: If happend with the defective products when receiving the goods,
how to deal with?
1. Next to impossible of the goods will be not good as before the
shipping, we have many chekings to confirm the products is no
problem. Then if happened, RealRun will bear all the
responsibility.
2. First: why this will be happen, how happen, and how to control
in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and
changing the goods or the loss caused.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: Who do I contact if I have a technical questions?
A: We have an experienced team of technical sales representatives
in house. They are ready to answer any questions you may have and
assist you in your project.
