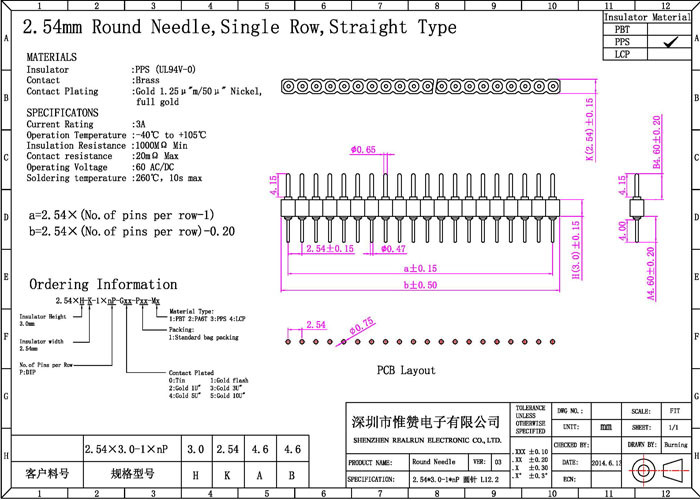

2.54mm Through Hole Pin Header Single Row 180 Degree DIP Type 10 Pin Connector

Description

1. Pin header is widely used in LED display, industrial control and power control, instruments and meters, security monitoring, automotive electronics, computers and peripheral equipment, medical devices, household appliances, power supply, various communication equipment, etc

2. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.

3.Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

3.According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

6. Number of stitches: 02 to 80; 02 to 100;

7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: What’s the delivery time?

A: It usually takes about 5~8 workdays to produce the products.

Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.

Q: Is OEM & ODM available?

A: OEM&ODM are welcome.

Why choose RealRun?

1. Passed ISO9001, ISO14001, ROHS, CE, UL,Reach certification

2. All products are shipped through ROHS test, coating test, salt spray test

3. Introduce a complete set of excellent and advanced production equipment from abroad, fully automatic production, high efficiency and high output

4. In terms of price, our unit price is only 1 / 5 of the imported connector

5. Independent product R & D, product design and mold design common products 15 days sample delivery

Shenzhen RealRun Electronic Co., Ltd established in May of 2008, specializes in operating connectors. Main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.

Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity, etc.

The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.

The company is located in Shenzhen Guangming new district, with a floorage of 1500sq.m. for plant and 100 employees.The company has a skilled R&D and management team, and first-class level of advanced production equipment and precision testing instruments. The domestic market is main in south China, radiation throughout the country, the international market is main in Hong Kong, Taiwan and the global clients.

Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 13 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
