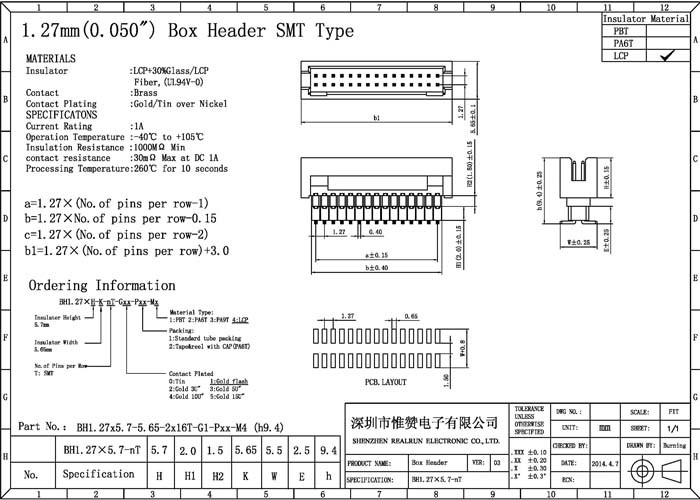

SMT Box Header Connector Double Row 1.27mm Pitch Board To Cable Connectors

Description

1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.

2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.

3. It is usually used to transmit control signals and weak current.

Category

1. According to the spacing: 1.0mm, 1.27mm, 2.0mm, 2.54mm.

2. No. of pins: 2~80 pins.

3. Installation mode: straight, right angle, SMT.

4. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

5. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

6. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

7. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column.

Shipping:

1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.

Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.

Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.

Why choose RealRun?

1. RealRun has more than 10 years experiences in the electronic connectors area.

2. The goods with good quality and service are sold to more than 70 countries.

3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.

4. One of the biggest electronic connectors supplier in the China mainland.

Shenzhen RealRun Electronic Co., Ltd established in May of 2008, specializes in operating connectors. Main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.

Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity, etc.

The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.

The company is located in Shenzhen Guangming new district, with a floorage of 1500sq.m. for plant and 100 employees.The company has a skilled R&D and management team, and first-class level of advanced production equipment and precision testing instruments. The domestic market is main in south China, radiation throughout the country, the international market is main in Hong Kong, Taiwan and the global clients.

Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 13 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
