25 Pin Black DB D-SUB Connector Solder Male Straight Type DP Socket

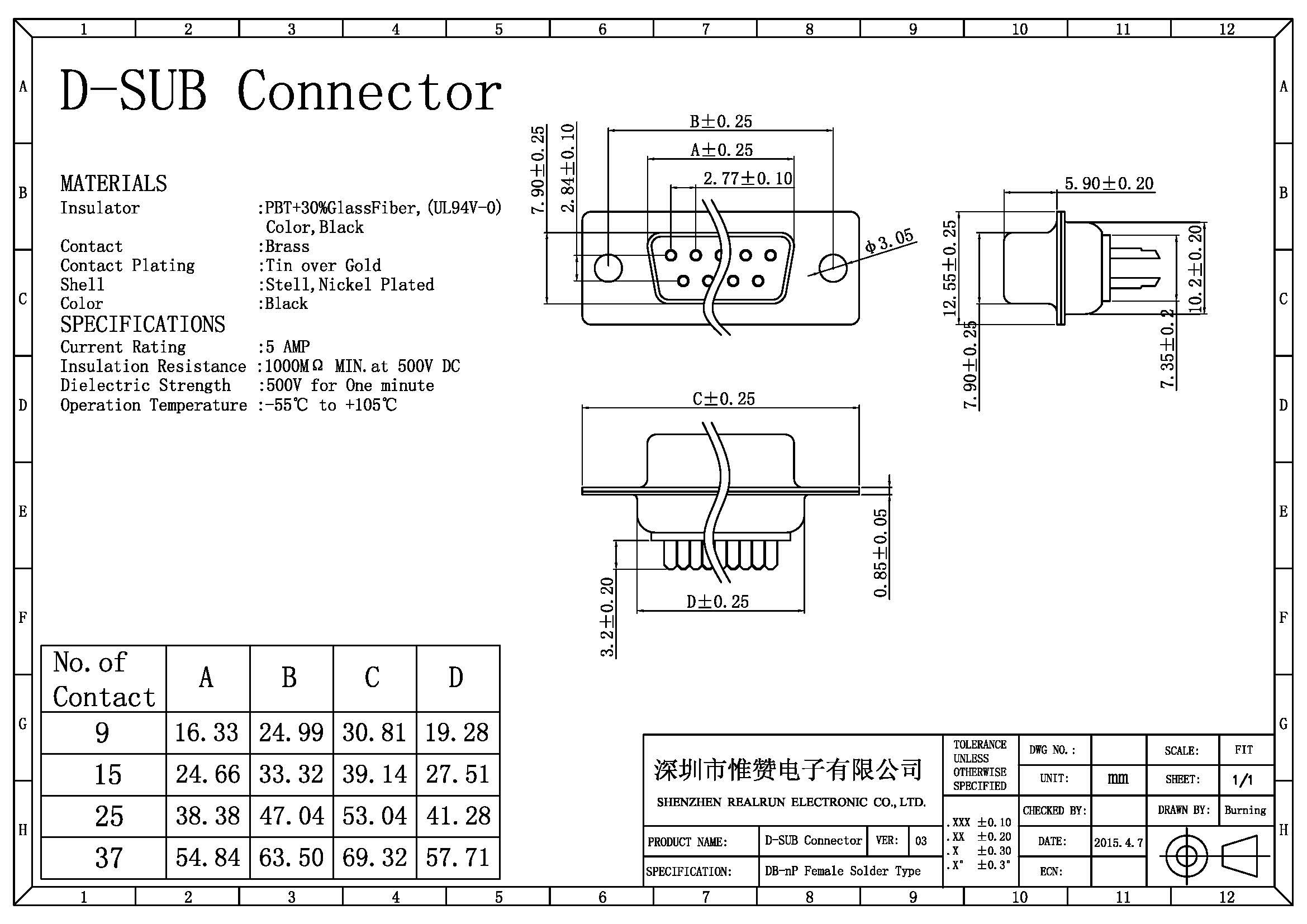

| Name | D SUB Connector |
| Pitch | 2.77mm |
| Type | DIP type |
| Insulator Color | Black |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Description
1. D-SUB is short for D-subminiature. The D-SUB connector uses a
series of pins that slot into a socket, with the plug usually
screwed into place to prevent it coming loose.
2. D-SUB can be divided into two rows, three rows of welding line
series, male head series, with rivets, with a high degree of close
reactivity and a variety of fixed ground accessories, is a
universal D-SUB., so that socket and plug protection cover
combined.
3. It is very good at shielding EMI. High-current D-SUB can
complete high-density and high-current series and can be mixed with
the signal at the same time. The maximum current is 50A. The
coaxial D-SUB allows mixed contact in mixed use, including signals,
Gaodianya and Fiber, this new type of connector, are improved by
combining military products.
Product Application:
D-SUB products can be divided into welding wire series, male head
head series, rivets, also known as "dB connectors" and "dsubs",
which have 9, 15, 25, 37 and 50 needles.The following diagram of the product application site can be used
for reference.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and
products.
2. Usually, new customer we prefer the 100% T/T before shipping or
30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product
and quoting department can get started on your quote. As an added
service, our qualified engineering staff can produce drawings.
