Product Description:

Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

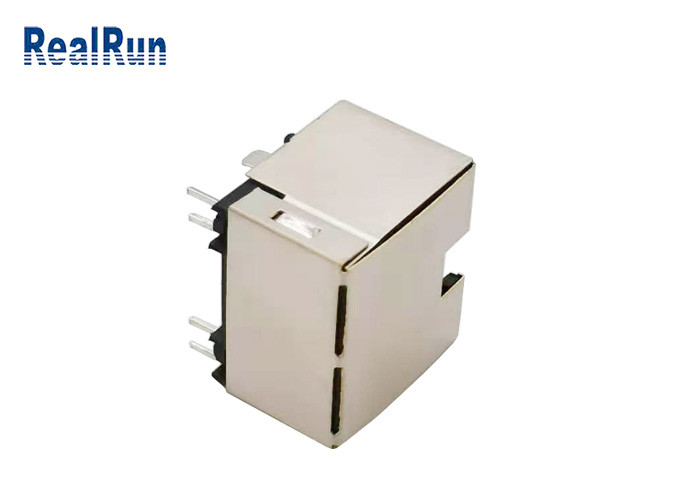

1 Port Rj45 Modular Jack PCB Connector With LED

Product Features: Connection stability, copper alloy buckle friction, current, signal transmission maximization, copper alloy shell shielding, durable, stable.

Product Material: PA46, H62, Phosphor bronze, Copper alloy, FE.

Scope of Application: Usually used in Communication interface of network equipment.

Specification:

Please feel free to contact us and we will send you the drawings you need.

Design Principle

RJ45 is composed of rj45 plug and rj45 socket. The connector composed of these two components is connected between the wires to realize the electrical continuity of the wires.

The core of RJ45 module is modular jack. The gold-plated wire or socket hole can maintain a stable and reliable electrical connection with the modular socket shrapnel. Due to the friction between the spring piece and the plug hole, the electrical contact is further strengthened with the insertion of the plug. The design of the main body of the jack adopts an integral locking mechanism, so that when the modular plug is inserted, the maximum drawing strength can be produced outside the interface between the plug and the jack. The wiring module of RJ45 module is connected with twisted pair through U-shaped wiring slot, and the locking spring can fix RJ45 module on the panel and other information outlet devices.

Shenzhen RealRun Electronic Co., Ltd established in May of 2008, specializes in operating connectors. Main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.

Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity, etc.

The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.

The company is located in Shenzhen Guangming new district, with a floorage of 1500sq.m. for plant and 100 employees.The company has a skilled R&D and management team, and first-class level of advanced production equipment and precision testing instruments. The domestic market is main in south China, radiation throughout the country, the international market is main in Hong Kong, Taiwan and the global clients.

Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 13 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
